Manufacturer code: KrRT-7242Ф

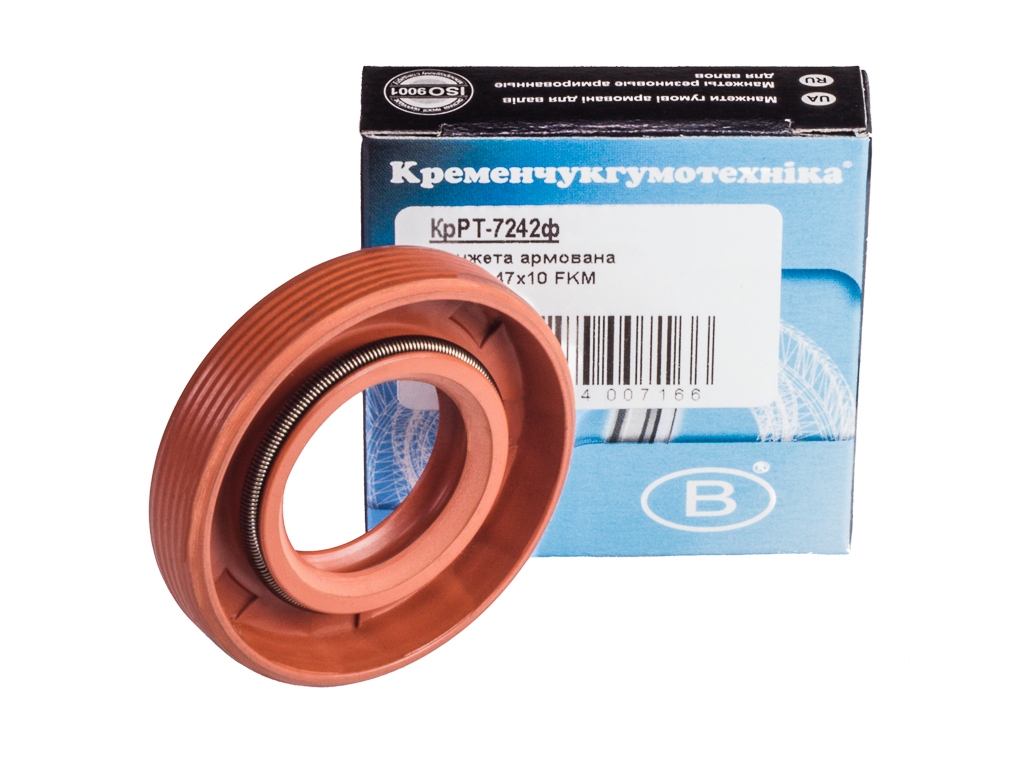

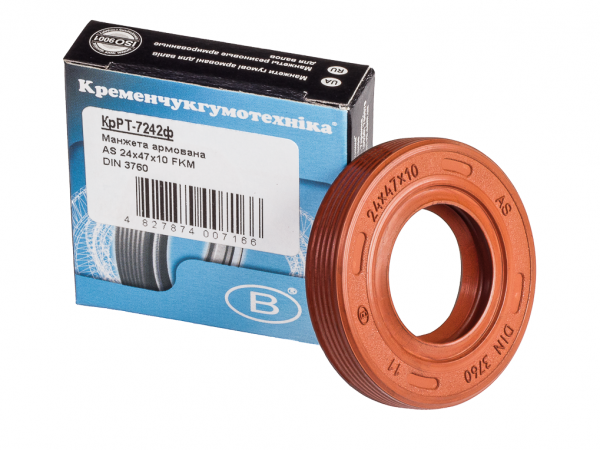

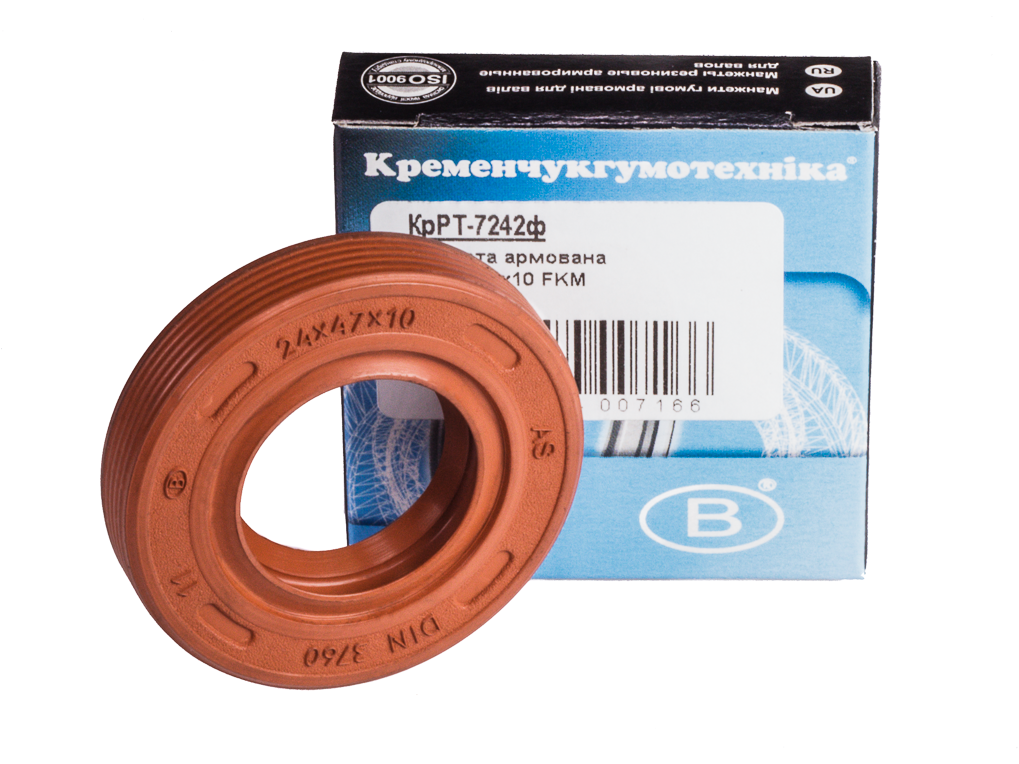

Rotary Shaft Seal AS 24x47x10 FKM DIN 3760 compressor Bogdan
24x47x10, 24*47*10, 24-47-10, 24x47-10, 024-047-10, 24/47/10 oil seal of Turkish compressor MAPO MO076.000 of BOGDAN ATAMAN Bogdan A-092/093 bus and ISUZU truck/bus , cat. number MO076.212, IZ71-M014A, 8114080554 FPM/FKM/VITON
SIZES
Size, mm:
24х47х10
d (shaft):
24
D (bore):
47
h (height):
10
RUBBER
Material:
Fluoroelastomer (FPM)
Color:
red
Rubber type acc. to standard:
5 (FPM-26, -30° ... +170°C, max +230°C)
CHARACTERISTICS
Dust protection:
with dustlip
Shaft rotation:
reverse (without hydrodynamic helixes)
Construction:
metal case fully rubberred
Design code:
BASLX7
Working edge type
mechanically trimmed
